Airtronic S2 D2L Diesel Furnace Kit

SKU: G23-KIT

Price:
Sale price$2,156.53
 More payment options

Recommended Add-Ons

Marine Installation Kit (24mm)

Description

The 12v Airtronic S2 Diesel Furnace kit provides up to 7500 btu of heat output.
Easy to install and user friendly.  Complete with all the necessary components needed.
  • Service life 5,000 h
  • Brushless motor
  • Use of the latest 'EasyStart Pro' Controller
  • Starting capability down to –46 °C(-50°F)
  • Stepless heating output (850 to 2200 Watts - 2900 to 7500 Btu)
  • Integrated altitude sensor:
    - Automatic altitude adjustment
    - Optimized combustion
  • Fuel consumption ~ 1 gallon/day

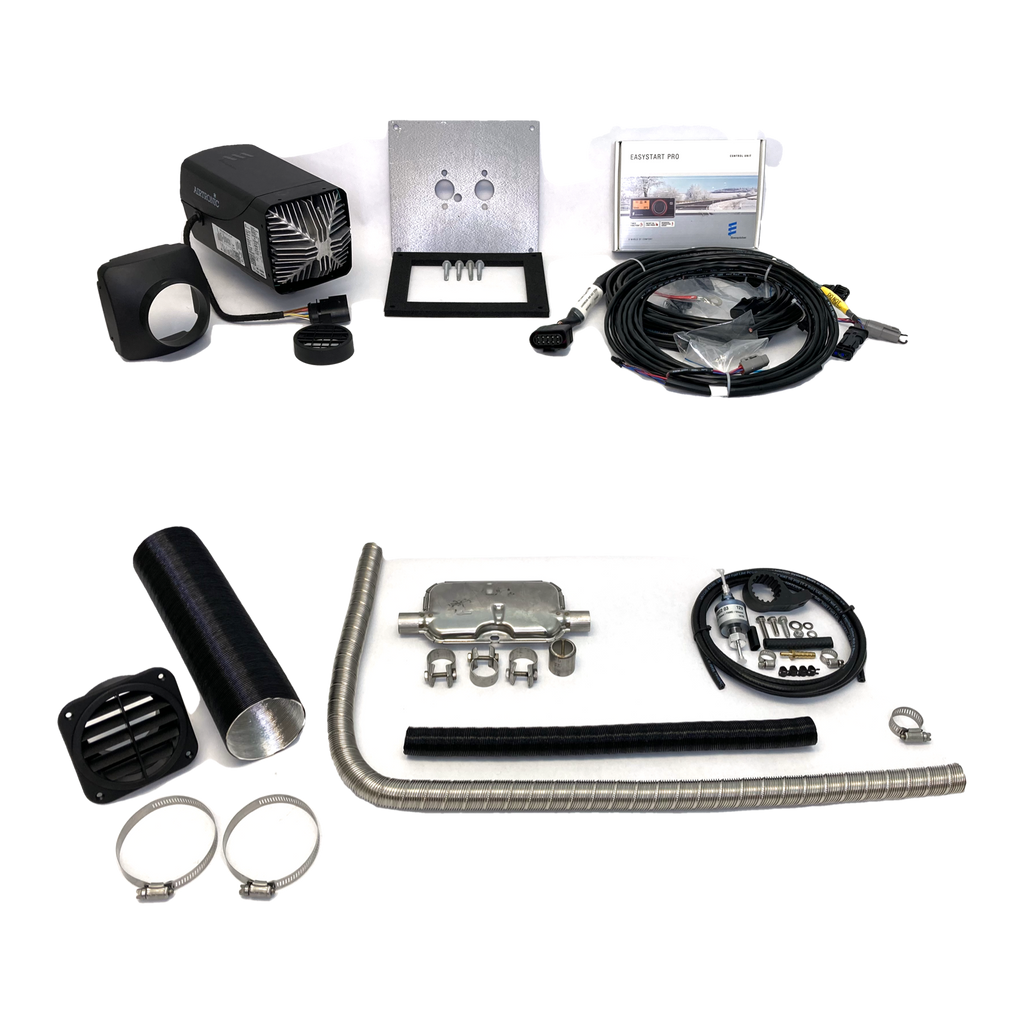

Qty
SKU
Description
1 F11-111 AIRTRONIC S2 D2L Diesel, 12 Volt, HEATER ONLY
1 E11-202 D2-D4-S2 Floor Mounting Plate
1 E11-229 S2 cable harness AX2 12V_24V
1 E22-151 s-2/s-3 fuel pump plug
1 E21-120 Easy Start Pro for S3, S2
1 E22-120 Fuel Pump Mounting Bracket D2-D4-D5
1 E11-105 S2-D2 Safety Screen 60mm
1 E11-214 S2-D2 Air Straight Outlet Hood 75mm
8 ft P15-100 1/8" Fuel Hose per ft.
4 P15-102 1/8" Fuel Hose Spring Clamp
1 P15-202 1/4" to 1/8" Brass Reducer
.2 ft P15-120 1/4" Fuel Hose per ft.
2 P15-121 1/4" Gear Hose Clamp
1 X11-104 S3-S2 EXHAUST MUFFLER 24MM
3 ft X11-110 24mm Exhaust flex pipe,D5/D4/Airtronic per ft.
3 X11-113 24mm Exhaust Clamp
1 X11-114 24mm Exhaust End Cap
1 ea X11-102 Air Intake Hose 25mm D4 Airtronic
1 P14-102 3/4" Hose Clamps-Worm Drive
1 ft A12-200a 3" High Temp Vent Hose per ft.
1 A13-099 3" High Temp Vent -Non closeable
3 P14-301 Exhaust bracket for 24MM
2 A12-201 3" Hose Clamps
